Butterfly resilient seated valves 301 series.

Size range 1.1/2” ÷ 40” (DN40 ÷ DN1000)
Type Wafer, Lug, Double flanged
Face to face dimension EN 558 series 20
Top flange ISO 5211
Max working pressure 20 bar – bidirectional
Flange drilling PN6, PN10, PN16 / ANSI class 150
Operating temperature -20 °C ÷ +160 °C (-4 °F ÷ +320 °F)
Standard materials Body: Ductile Iron, Carbon Steel, Stainless Steel, Al/Bronze, F51
Disc: Ductile Iron, Carbon Steel, Stainless Steel, Al/Bronze
Stem: AISI 316, AISI 420, AISI 630, MONEL K
Seat: NBR, EPDM, EPDM HT, VITON, more
(all seats have inside a metal ring reinforcement)
Leakage class Rate “A” – No leakage – according to EN 12266-1
Applications Liquids or gases in industrial environments, plants,
water treatment, vacuum, other applications with compatible
materials to working conditions
Certifications 2014/68/UE PED, 2014/34/UE ATEX,
SIL IEC 61508 – IEC 61511 GOST-R,
CU TR 10 – CU TR 32, TA-Luft

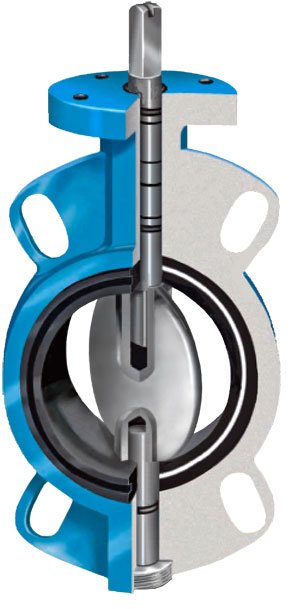

The upper stem is locked by manual or motorized control while the O-ring assures a life-time lubrication. Moreover, a mark is machined on the top part of the stem, which reproduces exactly the disc position, when yhe valve is inserted between the flanges.

The one-piece valve body casting ensures high strength with minimum weight. It can be supplied in a wide choice of materials, for both WAFER and LUG models, so as to meet all possible installation requirements.

The stem has a quare end which fits directly in the disc; hence no fastening elements are needed. This allows the disc to float on the stem and to be self-centering inside the seal so as to form a continuos tight shut-off line with the latter.

Thanks to the special shape of the SIRCA disc, pressure drops and forces of rotation are appreciably reduced. Thanks to the special internal profile of the surface of contact between disc-seat, the reciprocal back pressures ensure tight shutoff.

The resilient seat is vulcanized on metallic support ring. Thanks to its straight-forwar design it is easily replaceable without use of special tools.

Thanks to the special profile of the seat, no seal is required between the flanges.while the O-ring assures a life-time lubrication. Moreover, a mark is machined on the top part of the stem, which reproduces exactly the disc position, when yhe valve is inserted between the flanges.




ItemDescriptionMaterialsRef. Norm.
1BodyDuctile Iron EN GJS 400/15 o GGG40ASTM A 536 GR. 65-45-15
Al/BR. G-CU Al 11 Fe4 Ni4ASTM B 148-GR.955
Cut-off Carb.Steel P355NHEN 10028-3
Carbon SteelASTM 216 WCB
Stainless SteelASTM 351-CF8M / CF3M
2+3Upper and lower stemAI/BR CU AI 10 Ni5 Fe4DIN 1756
416 S.S.ASTM A 582 Type 416
316 S.S / 316 L.S.S.ASTM A 479 Type 316 / 316L
630 S.S.ASTM A 5642 Type 630
Duplex F51UNS S 31803
Hastelloy C 276ASTM B 574-94
Monel K 500BS 3076 NA 18(1989)
4+5**O-RingBuna / Viton-
6Short bushing with 1 ORBronze-
7SpacerCarbon Steel-
8Short bushing with 2 ORBronze-
9+10**O-RingBuna / Viton-
11PlugCarbon Steel / 304 S.S.-
12DiscDuctile Iron EN GJS 400/15 o GGG40ASTM A 536 GR.64-45-15
Al/BR. G-CU Al 11 Fe4 Ni4 Cut-offASTM B 148-GR.955
Carbon SteelASTM A 216 WCB
Stainless SteelASTM A 351-CF8M / CF3M
EPDM-BUNA N-Viton coatedASTM A 351 GR. CK 3 M CUN
RILSAN-HALAR coatedASTM A 351 GR. CD 4 M CU
ASTM A 494 CW 2 M
ASTM A 494 GR. CK M 35-1
13**SeatBuna N* - EPDM - EPDM H.T.-
Natural rubber - NeopreneASTM D 2000
Viton - Hypalon - Silicone-
PTFEASTM D 1437-73
14Long bushingBronze-
15+16**O-RingBuna / Viton-
17**BushingBronze-
18ScrewCarbon Steel 8.8 / S.S. A2-
* Du Pont trademark
** Spare part suggested
Special materials, are available on request.

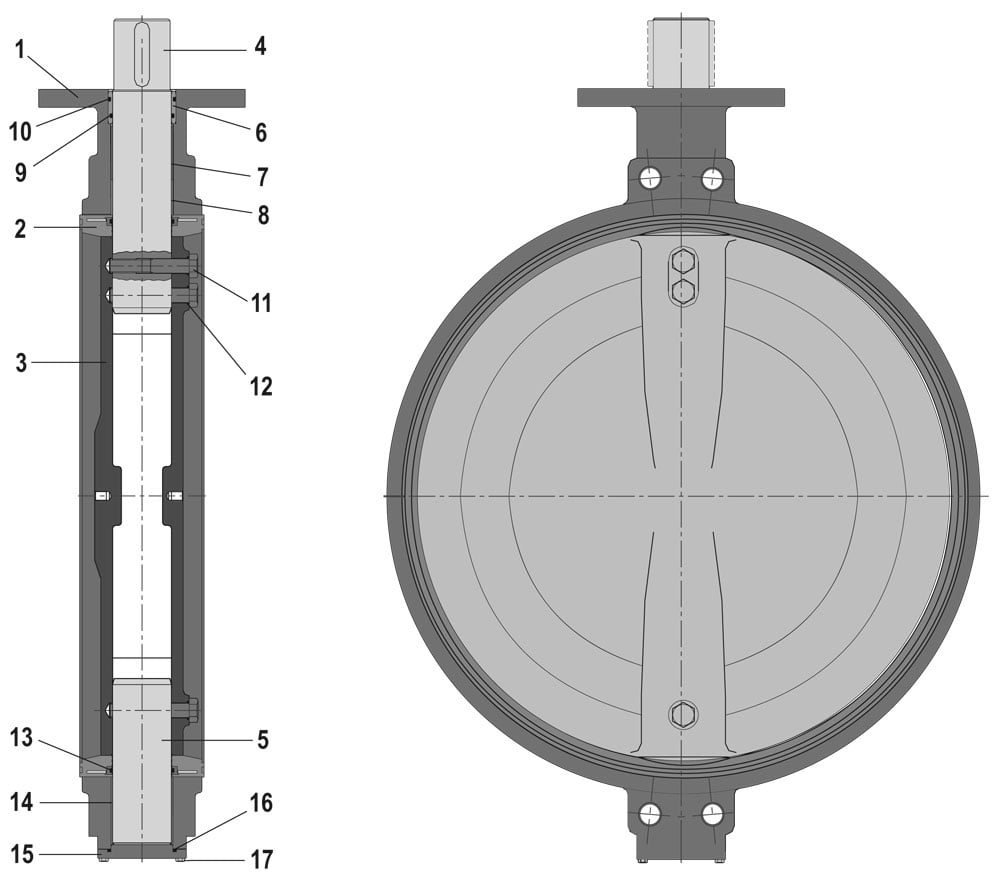

ItemDescriptionStandard materialsQ.ty
1BodyCarbon Steel A216 WCB - Stainless Steel ASTM A351-CF8M - Ductile Iron ENGJS400-151
2*GasketBuna / Viton /EPDM1
3DiscCarbon steel A216 WCB - Stainless Steel ASTM A351-CF8M - Ductile Iron ENGJS400-151
4Upper stemS.S. AISI 416 - S.S. AISI 420 - S.S. AISI 3161
5Lower stemS.S. AISI 416 - S.S. AISI 420 - S.S. AISI 3161
6Upper bushingBronze1
7Metal bushingCarbon Steel1
8Metal bushingCarbon Steel1
9*O-RingBuna / Viton1
10*O-RingBuna / Viton1
11*Hexagon screwSteel type class 8.8 or A2 S.S.3
12*O-RingBuna / Viton3
13*O-RingBuna / Viton3
14Metal bushingCarbon Steel1
15PlugCarbon Steel - 316 S.S.1
16*O-RingBuna / Viton1
17Hexagon screwSteel type class 8.8 or A2 S.S.4
* Spare part suggested


DNABCE?HH1J**KLØMØMØMØMØNØNØNØNPPPP?RST?V?W
PN6PN10PN16ANSIPN6PN10PN16ANSIPN6PN10PN16ANSIFLANGEN?ØHOLES
150 lbs150 lbs150 lbsHOLESHOLESCIRCLE
***
40188909812145111346.63110011011098.5M12M16M161/2”44449048.57016
50205961091216012043.57.236110125125120.5M12M16M165/8”44449048.57016
65230108122121801384612.953130145145139.5M12M16M165/8”44449048.57016
80250118132121981504619.369150160160152.5M16M16M165/8”48849048.57016
100285132153122302135227.1590170180180190.5M16M16M165/8”48889048.57016
1253271501771625624356.536.4115200210210216M16M16M163/4”88889048.57019.5
1503591651941628626756.548.6142225240240241.5M16M20M203/4”88889048.57019.5
200419194225163483206069.8199280295295298.5M16M20M203/4”881289048.57019.5
250495220275184144026890238335350355362M16M20M247/8”1212121212541110224
3005592622972249047378111.1289395400410432M20M20M247/8”1212121212541110229
** Complying with I.S. EN 558-1 Standards
“L” is the measurement of the disc chord, which determines its full opening.
*** For flanges ANSI 150 lbs thread is according to ANSI B1.1 type UNC / 8-UN .
*** On request, for ANSI 150 lbs metric threading UNI EN 1092-1.

DN A B C D ØE F* ØH H1 J** K L ØM ØM ØM ØM ØN ØN ØN ØN P P P P ØR S T ?V
PN6 PN10 PN16 ANSIPN6 PN10 PN16 ANSIPN6 PN10 PN16 ANSIFLANGE N?ØHOLES
150 lbs 150 lbs150 lbs HOLES HOLES CIRCLE
***
3506322813516044.514x43651678126324445460470476M20 M20 M24 1” 12161612175417140
400681305.5375.56044.59x483590102138367495515525540M20 M24 M27 1” 16161616175417140
4507493494006044.545540644114157417550565585578M20 M24 M27 1 1/8” 16202016175417140
5007983734256044.5580715127179468600620650635M20 M24 M30 1 1/8” 20202020175417140
600936445491906318x710830153218572705725770749.5M24 M276 M33 M3020202020210422165
11x1/8”
80
70011205405809075792910165261666810840840863.6M24 M27 M33 1 1/4”24242428300818254
n?28-UN
7501195585610907522x860970190279719- - - 914.40M27- - 1 1/4”24- - 28300817254
14x8-UN
80012426126309075809251040190304774920950950977.9M27 M30 M361 1/2”24242428360818254
x3 8-UN
900135066069012095n?2100811502033398581020105010501085.9M27 M30 M361 1/2”24282832360821298
25xx3 8-UN
14x
1000150074076012095110113512602163839571120116011701200.2M27 M33 M39 1 1/2”28282836415821298
8-UN
** Complying with I.S. EN 558-1 Standards.
“L” is the measurement of the disc chord, which determines its full opening.
*** For flanges ANSI 150 lbs thread is according to ANSI B1.1 type UNC / 8-UN.
*** On request, for ANSI 150 lbs metric threading UNI EN 1092-1.
****For butterfly valves wafer type from DN700 to DN1000, the body has only four holes threaded for each side.
